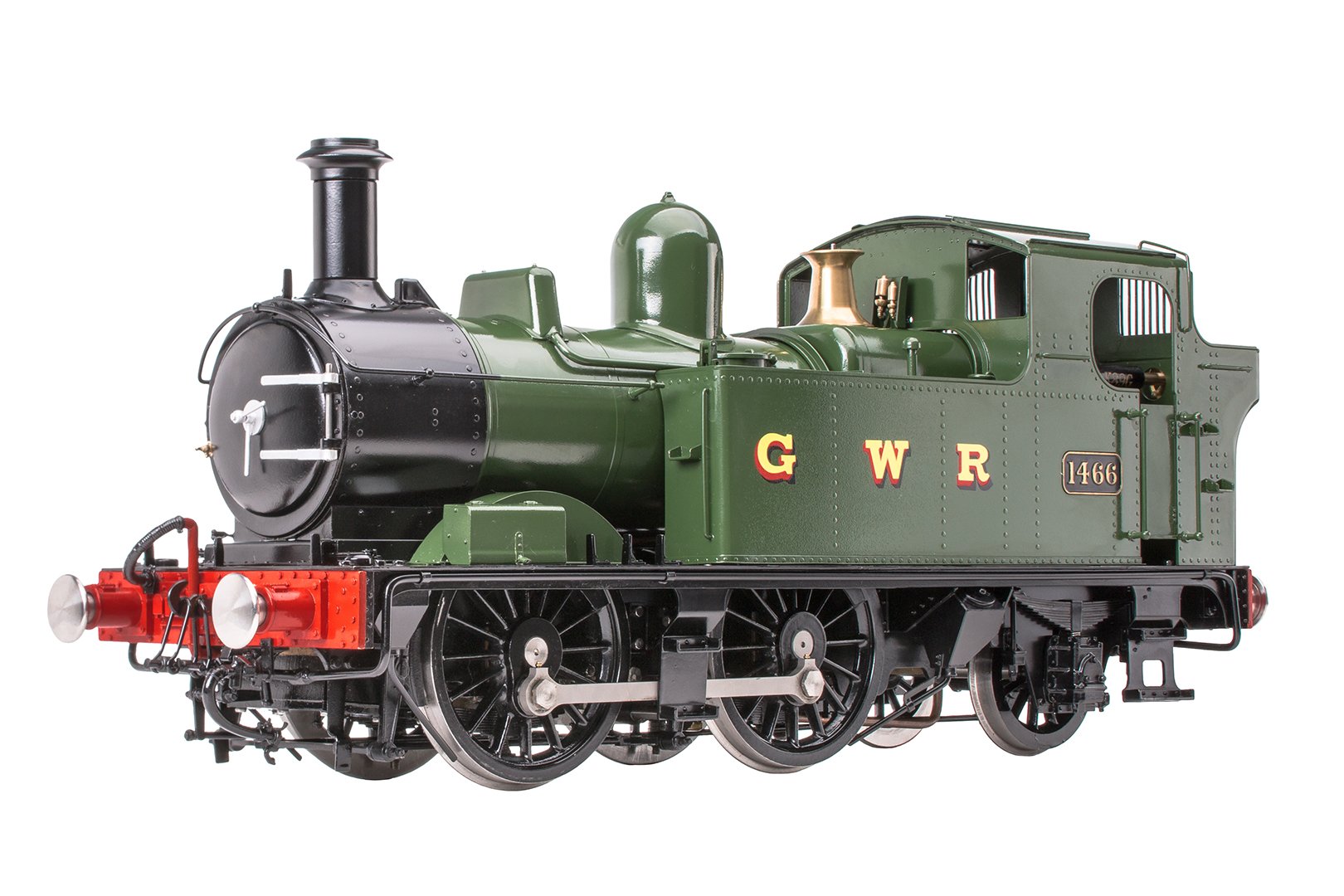

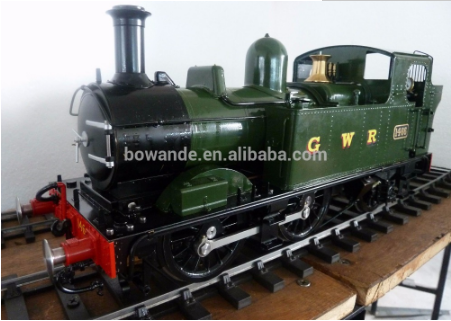

G3 Scale British 14XX
G3 Scale British 14XX details
Main technical parameter
1. Dimensions (L*W*H): 764mm*95mm*143mm
2. Weight: 7Kgs
3. Wheel configuration: 0-4-2
4. Burning system: Ceramic Burner, gas fired
5. Working cylinder: two
7. Minimum radius: 2000mm
8. Boiler working pressure: 60psi
Features
All brass construction
Copper boiler
Butane gas fired
Ceramic Burner
Adjustable safety valves

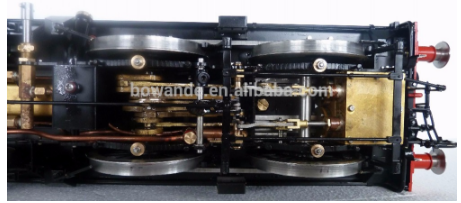

Stephenson reversing gear
Axle pump and hand pump
Lubricator
Visible water level glass
Workable whistle
UK imported pressure gauge
